Viewing the Audit Log

The Audit Log Viewer lists operational changes to the system in a list that can be filtered by any of the following criteria.

  • User Name—Select from the list of authorized users
  • Service Type—Changes made to BACnet or KMD controllers, or any of the building services
  • Log Time—The time and date when the change was made
  • Search for Phrase—A simple text search.

To view the audit log, do the following:

1 Log on to the TotalControl Web Portal.
2 From Modules, choose Audit Log Viewer.
3 To add search or filter criteria, do the following:
  1. Click Search and Filter to reveal the Search and Filter area.
  2. From the Search Category list, choose the criteria for the search.
  3. Set the search parameters such as time and date or user names.
  4. Click Search.

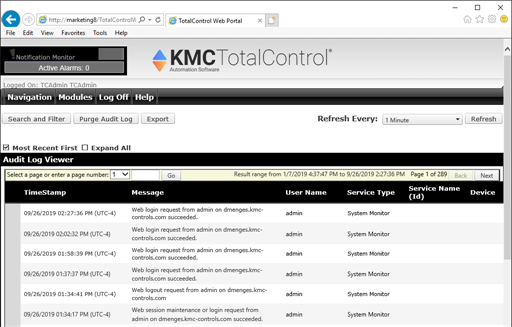

Audit log in the Audit Log Viewer module

1 Open a log for viewing.
2 Click Export.
3 Click Download. The log will be saved as a .csv file inside of a .zip file.



1 Open a log for viewing.
2 Click Purge.
3 Enter a time and date. All records older than the entered time and date will be removed.
4 Click Purge.
