Selecting a schedule

The schedules in BACnet controllers can be changed through the Web Portal Schedule Selector.

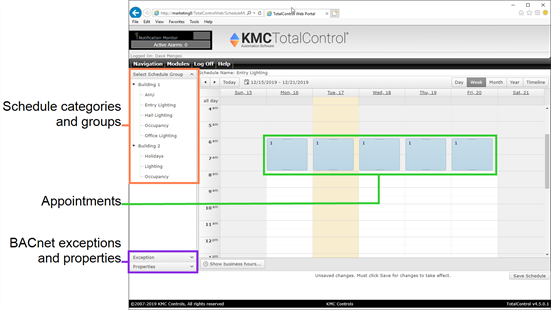

Web Portal Schedule Manager

To select a schedule for editing, do the following:

1 Log on to the TotalControl Web Portal.
2 From Modules, choose Schedule Manager.
3 Under Select Schedule Group, expand or collapse the list of groups to reveal the schedule.
4 Click the schedule name. The page changes to the schedule view.
