The Web Portal page

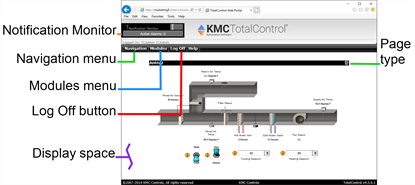

The Web Portal is a combination of standard TotalControl modules and custom pages. The key elements of the Web Portal page are:
- The Notification Monitor for alarms
- The Navigation menu to open custom graphic pages
- The Modules menu to open standard TotalControl viewers for alarms, trends, schedules, reports, user management, and security.
- The Log On/Log Off button.
- The display space contains one of the modules or a custom graphic page.
Logging on and logging off are explained in the topic Log on and off. The other functions are explained in topics and sections that follow.
Typical custom graphics page
Notification Monitor
The Notification monitor is a visual alert that TotalControl has received an alarm or event that has not been acknowledged by an operator. Clicking the bottom of the Notification Monitor opens the Alarm Viewer page. See Displaying, acknowledging, and archiving alarms for details on alarm viewing and management.
Active alarm in the Notification Monitor
Navigation menu

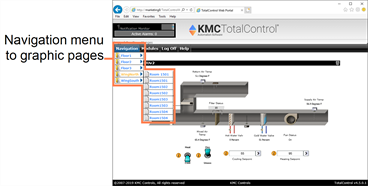

The Navigation menu is a list of links to custom pages created specifically for the building automation system. The exact details of the equipment represented on each page will be provided by the TotalControl system administrator. See Custom web pages for the details on the various parts of the custom pages.
Navigation menus
Modules menu
The commands in the Modules menu are a set of standard TotalControl features for viewing the system status, changing a schedule, or managing user access. Each of the modules is explained in detail in the following sections.
- Open the Trend Viewer to view graphs of system performance. See Using the Trend Viewer module.
- Manage the placement of trend logs, groups, and categories. See Configuring trend logs in the Web Portal.
- The Alarm Viewer displays alarms and events in a list. See Displaying, acknowledging, and archiving alarms.
- Either of two modules can manage the automatic operation of equipment. See The Schedule Viewer module and The Schedule Manager module.
- Use the All Point and Audit Report viewers to create, view and export reports TotalControl reports.
- Add or delete users and change other security items with the Web Administrator module. See Managing security in the Web Portal.
